Explore Products.
Flexible Solutions for Your Specific Need.
Hardware

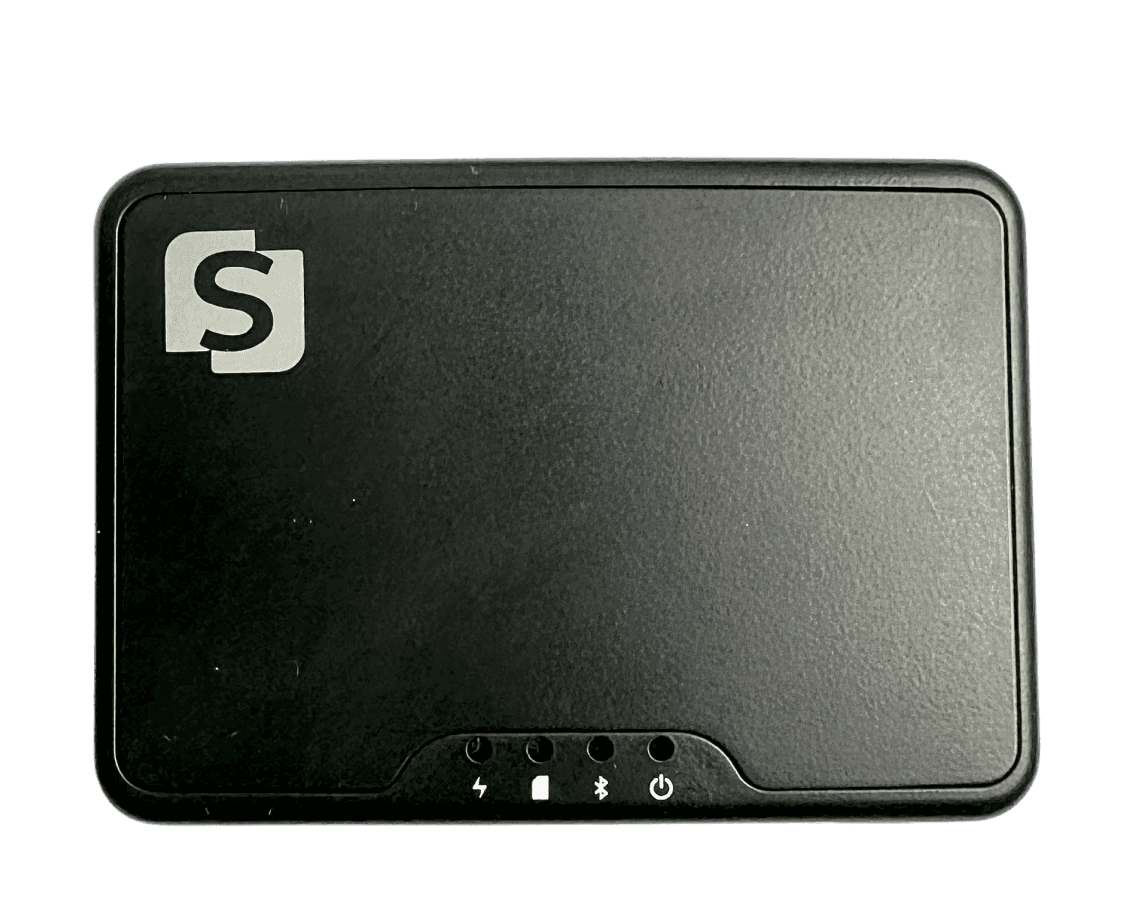

Orion
High Density Wireless EEG System
The Orion series offers flexible, high-density recording with up to 32 channels in the standard 10-10 configuration. With onboard SD storage, it captures data at up to 500 samples per second per channel. Compatible with dry, gel, and saline electrodes, the Orion series is built to meet a wide range of use cases.

Features
Up to
500 SPS
Per Channel
Onboard
SD Card
Storage
Up to
12 hours
Battery Life
BLE 5.0
Connectivity
24-bit
Resolution
Tech Specs
Model
Orion-16
Orion-24
Orion-32
Channels
16
24
32
Sampling Rate
(Wireless - App)
250/500 Hz
250 Hz
Sampling Rate
(On Device - SD Card)
500 Hz
Sampling Rate
(Internal - Downsampled)
2000 Hz
Coupling
DC coupled
Resolution
24 bits
Frequency Band
0.5-60 Hz
Notch Filter
50 Hz, 60 Hz
LPF
80 Hz
HPF
0.5 Hz
Input Range
-666mV ~ +666mV
CMRR
IEC 60601-2-26 Equivalent
Impedance Check
Real Time
IMU
Acceleration: ±8g, 50 Hz,
Gyroscope: ±2000 dps, 50 Hz
Battery
Rechargeable Li-ion 3.7V, 1000mAh
Battery Life
Up to 12 hrs
Wireless
Communication
BLE 5.0
EEG Cap Sizes
S:54 cm, M:58 cm, L:62 cm
EEG Cap Openings
75 in Standard 10-10
Electrode Types
Dry, Gel, Saline
Orion
High Density Wireless EEG System
The Orion series offers flexible, high-density recording with up to 32 channels in the standard 10-10 configuration. With onboard SD storage, it captures data at up to 500 samples per second per channel. Compatible with dry, gel, and saline electrodes, the Orion series is built to meet a wide range of use cases.

Features
Up to
500 SPS
Per Channel
Onboard
SD Card
Storage
Up to
12 hours
Battery Life
BLE 5.0
Connectivity
24-bit
Resolution
Tech Specs
Model
Orion-16
Orion-24
Orion-32
Channels
16
24
32
Sampling Rate
(Wireless - App)
250/500 Hz
250 Hz
Sampling Rate
(On Device - SD Card)
500 Hz
Sampling Rate
(Internal - Downsampled)
2000 Hz
Coupling
DC coupled
Resolution
24 bits
Frequency Band
0.5-60 Hz
Notch Filter
50 Hz, 60 Hz
LPF
80 Hz
HPF
0.5 Hz
Input Range
-666mV ~ +666mV
CMRR
IEC 60601-2-26 Equivalent
Impedance Check
Real Time
IMU
Acceleration: ±8g, 50 Hz,
Gyroscope: ±2000 dps, 50 Hz
Battery
Rechargeable Li-ion 3.7V, 1000mAh
Battery Life
Up to 12 hrs
Wireless
Communication
BLE 5.0
EEG Cap Sizes
S:54 cm, M:58 cm, L:62 cm
EEG Cap Openings
75 in Standard 10-10
Electrode Types
Dry, Gel, Saline
Orion
High Density Wireless EEG System
The Orion series offers flexible, high-density recording with up to 32 channels in the standard 10-10 configuration. With onboard SD storage, it captures data at up to 500 samples per second per channel. Compatible with dry, gel, and saline electrodes, the Orion series is built to meet a wide range of use cases.

Features
Up to
500 SPS
Per Channel
Onboard
SD Card
Storage
Up to
12 hours
Battery Life
BLE 5.0
Connectivity
24-bit
Resolution
Tech Specs
Model
Orion-16
Orion-24
Orion-32
Channels
16
24
32
Sampling Rate
(Wireless - App)
250/500 Hz
250 Hz
Sampling Rate
(On Device - SD Card)
500 Hz
Sampling Rate
(Internal - Downsampled)
2000 Hz
Coupling
DC coupled
Resolution
24 bits
Frequency Band
0.5-60 Hz
Notch Filter
50 Hz, 60 Hz
LPF
80 Hz
HPF
0.5 Hz
Input Range
-666mV ~ +666mV
CMRR
IEC 60601-2-26 Equivalent
Impedance Check
Real Time
IMU
Acceleration: ±8g, 50 Hz,
Gyroscope: ±2000 dps, 50 Hz
Battery
Rechargeable Li-ion 3.7V, 1000mAh
Battery Life
Up to 12 hrs
Wireless
Communication
BLE 5.0
EEG Cap Sizes
S:54 cm, M:58 cm, L:62 cm
EEG Cap Openings
75 in Standard 10-10
Electrode Types
Dry, Gel, Saline
Orion
High Density Wireless EEG System
The Orion series offers flexible, high-density recording with up to 32 channels in the standard 10-10 configuration. With onboard SD storage, it captures data at up to 500 samples per second per channel. Compatible with dry, gel, and saline electrodes, the Orion series is built to meet a wide range of use cases.

Features
Up to
500 SPS
Per Channel
Onboard
SD Card
Storage
Up to
12 hours
Battery Life
BLE 5.0
Connectivity
24-bit
Resolution
Tech Specs
Model
Orion-16
Orion-24
Orion-32
Channels
16
24
32
Sampling Rate
(Wireless - App)
250/500 Hz
250 Hz
Sampling Rate
(On Device - SD Card)
500 Hz
Sampling Rate
(Internal - Downsampled)
2000 Hz
Coupling
DC coupled
Resolution
24 bits
Frequency Band
0.5-60 Hz
Notch Filter
50 Hz, 60 Hz
LPF
80 Hz
HPF
0.5 Hz
Input Range
-666mV ~ +666mV
CMRR
IEC 60601-2-26 Equivalent
Impedance Check
Real Time
IMU
Acceleration: ±8g, 50 Hz,
Gyroscope: ±2000 dps, 50 Hz
Battery
Rechargeable Li-ion 3.7V, 1000mAh
Battery Life
Up to 12 hrs
Wireless
Communication
BLE 5.0
EEG Cap Sizes
S:54 cm, M:58 cm, L:62 cm
EEG Cap Openings
75 in Standard 10-10
Electrode Types
Dry, Gel, Saline
Integration
SDK
Integrate with our devices easily through our free SDKs and get raw data out to you application. We are still working on releasing our SDKs, if you need something we do not have yet leave use a note and we will get it out!






















Additional Documents
Software
Synchroni Platform
Timeseries Database Interface
Easily store, clean, query, and organize your data in our simple to use web app.
*Currently in closed alpha - access is available by request and subject to review.
NeuroSync
Timeseries Recording Software
Tool for collecting biometric timeseries data. Easily tag and label your data and export raw data out in BDF format.
*Currently only available to researchers or Orion device buyers
